Highrise Suspended Platform for China Manufacturer
Highrise Suspended Platform for China Manufacturer
Prix FOB:
US $2,220.000 / Piece
Quantité Minimum:
1 Piece/Pieces
Capacité de fourniture:
20000 Piece/Pieces per Month
Port:
QINGDAO port
E-mail:
Quantité:
Piece
  • Produit Détails
  • Présentation d'entreprise
Détails Rapides
Lieu d'origine:
China (Mainland)
Nom de Marque:
Hongwei
Numéro de modèle:
ZLP630/ZLP800
Emballage & Livraison
Wooden Case
Video Product
Produit Description

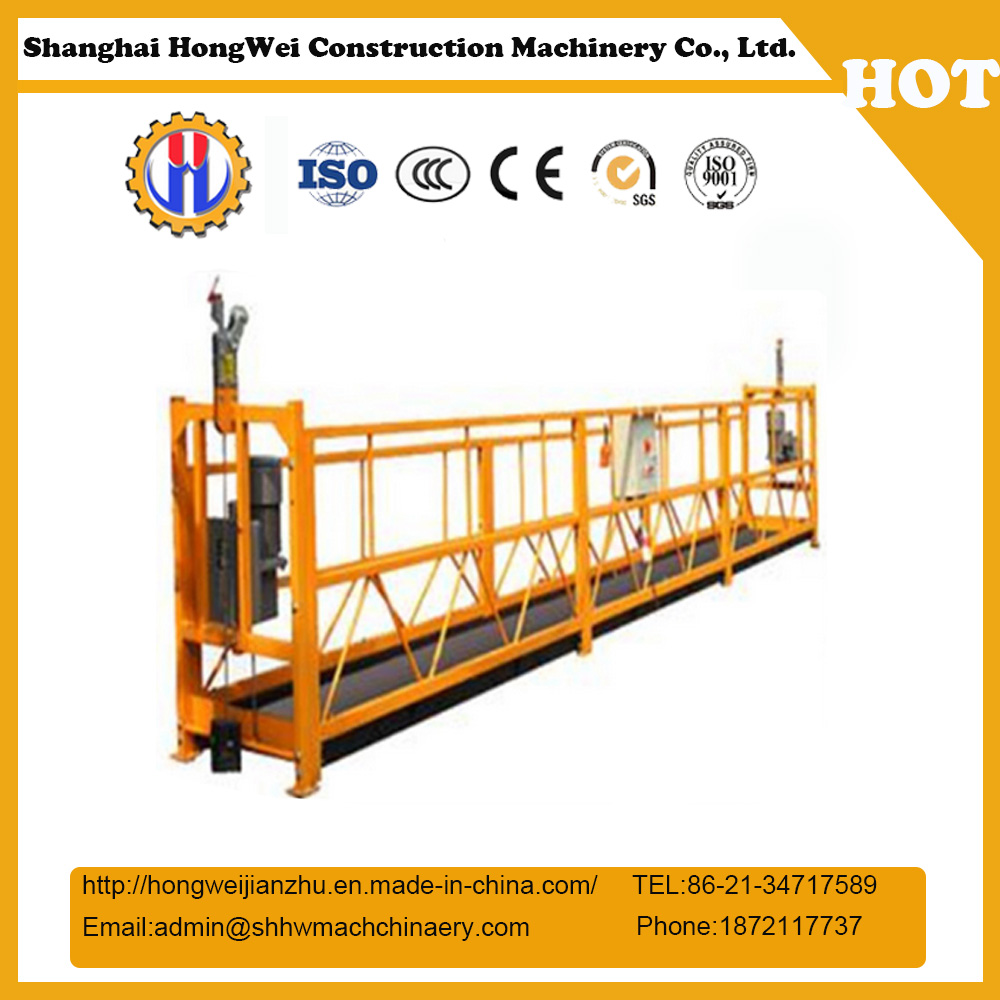

Highrise Suspended Platform for China Manufacturer

Highrise Suspended Platform for China ManufacturerHighrise Suspended Platform for China Manufacturer

Basic Info

  • Model NO.: ZLP630/ZLP800  Lift Mechanism: Lift Chain  Moves: Stationary

  • Running Mode: Stationary  Suspended Platform: Suspended Platform

  • Place of Origin: Shanghai, China (Mainland)

  • Model Number: Zlp630/Zlp800/Zlp1000  Rated Load: 630kg,800kg,1000kg

  • Transport Package: Wooden Case  Origin: Shanghai

  • Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

  • Carrying Capacity: Light Level  Driven Type: AC

  • Certification: SGS, CE, ISO 9001  High-Rise Buildings: Suspended Platform

  • Brand Name: Hongwei  Material: Steel,Aluminum Alloy,Galvanized Steel

  • Trademark: Suspended Platform

    Specification: SGS, CE, CCC, ISO  HS Code: 8431390000

Product Description

Products info:
ZlP series suspended platform are mainly used for the exterior construction, decoration and fitting-out works of multi-storey buildings such as the following: high rise elevator, cableway installation, granary, colliery, security inspection, tower hoist driver's lift, large tank, chimney, boiler maintenance, dam and bridge maintenance. The length can be up to 30 meters. Suspended platform is also applicable to exterior wall decoration, plastering,building insulation, coating, marble tile installation, glass curtain wall installation and cleaning.

The suspended platform can be instead of scaffoldings, which will greatly reduce the cost, and with higher efficiency; what's more, operation is simple and flexible, easy to transfer, easy to use, safe and reliable etc.ZLP series suspended platform conforms to GB19155-2003 standard.
Our Suspension platforms have gained great popularity all over the world with superior-quality,excellent-appearance,long-life...

Suspended Platform/working platform (Aluminum alloy); Suspended Platform; rope suspended platform

1. The length of platform can be adjusted within 1M-10M.

2. The working height can be adjusted with your need.

3. The Voltage can be adjusted with your need.

4. The hoist position: 1) inside cage; 2) outside cage

5. Three platform's materials: 1) Aluminum alloy; 2) Steel; 3)  Galvanized steel


TypeZLP800ZLP630ZLP500
Rated load800KG630KG500KG
Suspension Platform Size(2.5m×3)×0.76m×1.45m(2m×3)×0.76m×1.45m(2.5m×2)×0.76m×1.45m
Max.lifting height100m100m100m
RopeModel4×31SW+FC-9.14×31SW+FC-8.34×31SW+FC-8.3
Lenght100m×4100m×4100m×4
Diameter9.1mm8.6mm8.3mm
Lifting
machine
ModelLTD80LTD63LTD50
Pulling power7.8KN6.17KN6.17KN
MotorModelYEJ100L-4YEJ90L-4YEJ90L-4
Power1.8KW*21.5KW*21.5KW*2
Voltage380V380V380V
Rotational speed1420rpm1420rpm1420rpm
Braking moment15Nm15Nm15Nm
Security
Lock
ModelLSF309LSF308LSF308
Permission force of impact30KN30KN30KN
Locking Cable Angle3°~8°3°~8°3°~8°
Suspension
mechanism
Weight180Kg×2180Kg×2180Kg×2
Adjustable height1.15~1.75m1.15~1.75m1.15~1.75m
Front beam overhang1.3~1.5m1.3~1.5m1.3~1.5m
Support adjustble height1.44~2.14m1.44~2.14m1.44~2.14m
Weight
suspended
Steel530kg480kg410kg
Aluminum380kg340kg290kg
Counter weight1000kg800kg630kg
20'ft container8PCS9PCS10PCS
40'ft container13PCS14PCS12PCS






Highrise Suspended Platform for China Manufacturer
Highrise Suspended Platform for China Manufacturer
