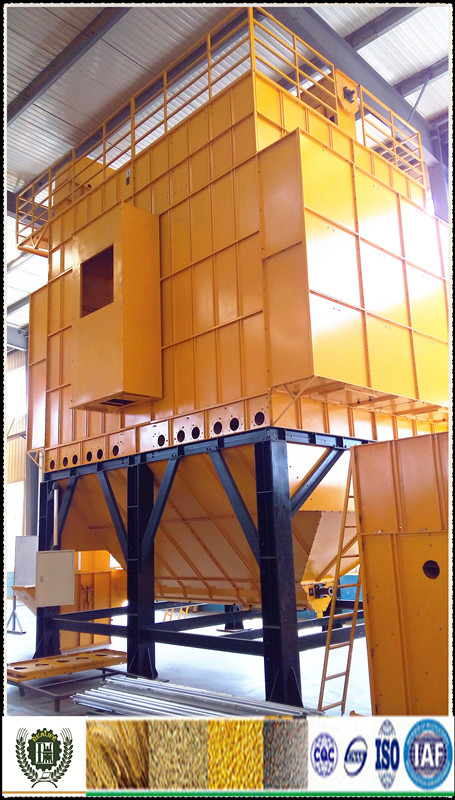

100 ton Famous Brand Maize Dryer

Technical Parameter:

Technical Parameters		Units	5HXH-100
Grain type &Processing capacity	Paddy	T	20-100
	Wheat		25-125
	Maize		25-125
Draft fan	Model	/	4-8512c
	Form	/	Centrifugal Fan
	Speed	r/min	850
	Blowing rate	m3/h	39140-73500
	Total pressure	Pa	1800
Hot blast stove	Form	/	Automatic temperature control
	Ignition system	/	Manual ignition
	Fuel	/	Biochar / Coal
	Fuel consumption	kg/h	less than 200/120
Total Power		KW	79.75

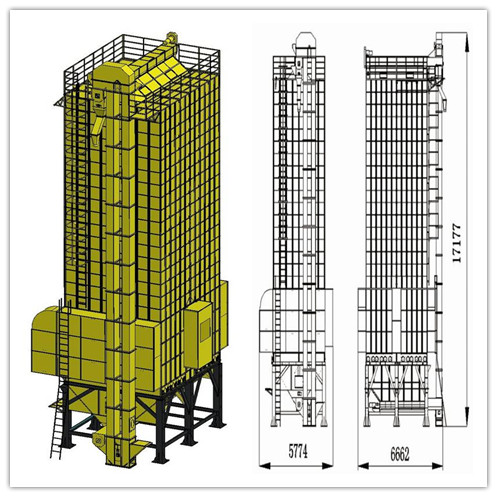

Dimention		mm	6662×5774×17177
Performs	Feeding time	min	50-60
	Discharging time	min	60-70
	Drying rate	%/h	0.8-1.0
Safety device		/	Full grain alarm, overload protection device, overheat sensor, control fuse, pressure sensor, combustion engine off alarm.
Null		The actual drying rate will vary with the ambient temperature, the hot air temperature, the relative humidity, the material variety and the moisture content of materials.

Product Description

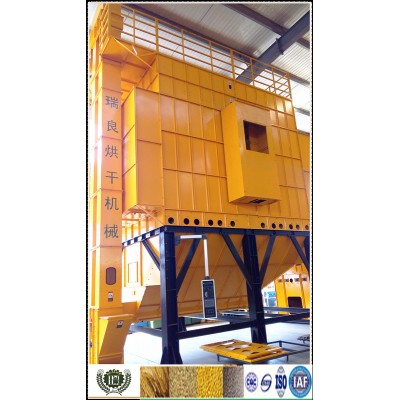

5HXH-100

Large tonnage design, grain burst rate, low broken rate.

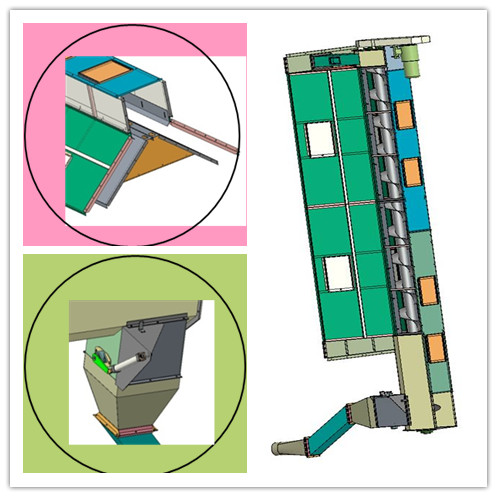

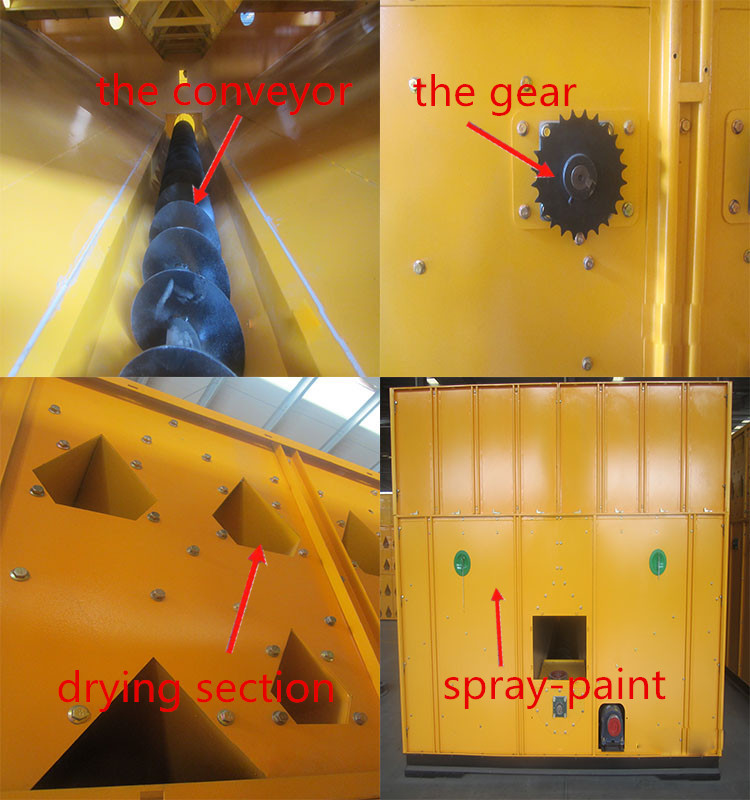

1. Adopt a new type of conveying structure, simple structure, and uniform grain, reduce the grain pile height;

2. According to the need to adjust the speed of the feed, completely eliminate the possibility of blocking;

3. Electric discharge grain, high degree of automation.


Product Feature

1. High drying quality: The drying grain selling well and high profit, for taste good and high-quality.

2.Cheaper drying cost: Under the same conditions, the energy consumption is reduced by 10%-20%.

3. More widely application: For paddy, maize, wheat, rapeseed, soybean, coffee bean, sesame, seed and so on.

4. Long operating life: Convenient installation and service on site, the product has long operating life.

5. Perfect after sales service: Standard operation service process, patient service attitude, to ensure that users do not worry about the product.

Company Information

Realife company is one of 2015 Shandong Province agricultural machinery and equipment R&D project enterprise.Company has a management team with many years of experience in dryig machinery industry. It also hired a lot of experienced R&D and manufacture experts from domestic. The company was established in less than a year.

It developed with independent intellectual property rights and patent products, 4 series of products have been developed for 6T-35T low temperature circulation type, 10T-35T low temperature mixed-flow type, 1T-5T type and 100T-1000T high temperature continuous type etc.
