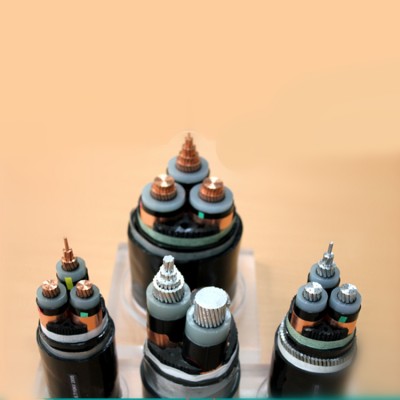

Product Description
Technical Parameters of our Power Cable
1). Standard: IEC60502; GB/T12706;IEC 60840;IEC62067;GB/T 11017;GB/Z 18890
2). Detailed description or construction:
Conductor: compacted or uncompacted copper or aluminium
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Armour: Galvanized steel wire armored (SWA) or steel tape armored (STA)
Sheath: Polyvinyl chloride (PVC)
3). The rated voltages U0/U(Um) of the cables considered in this standard are as follows:
U0/U(Um) =0.6/1(1.2)-3.6/6(7.2)-6/10(12)-6.35/11(12)-8.7/15(17.5)-12/20(24)-12.7/22(24)-18/30(36)-19/33(36)-26/35(40.5)KV
4). Voltage:
0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV,6.35/11kV, 8.7/15kV, 12/20kV,12.7/22kV, 18/30kV,19/33kV,26/35kV
5). Application:
For laying indoors, in tunnel or cable trench with large difference of level able to bear external mechanical forces.
6). Marking: According to the customers' requirements.
Type | Description | |
Cu | AL | |
YJV
| YJLV
| XLPE insulated PVC sheathed power cable
|
ZR-YJV
| ZR-YJLV
| XLPE insulated PVC sheathed flame-retardant power cable
|
YJV22
| YJLV22
| XLPE insulated PVC sheathed steel tape armored power cable
|
ZR-YJV22 | ZR-YJLV22 | XLPE insulated PVC sheathed steel tape armored flame-retardant power cable |
Specification
No.of cores | Cu | Al | ||
YJV,ZR-YJV | YJV22,ZR-YJV22 | YJLV,ZR-YJLV | YJLV22,ZR-YJLV22 | |
1 2 3 4 5 3+1 3+2 4+1 | 1.5~500 1.5~300 1.5~300 1.5~300 1.5~300 4~300 4~300 4~300 | 10~500 4~240 2.5~240 2.5~240 2.5~240 4~240 4~240 4~240 | 4~500 4~300 4~300 4~300 4~300 6~300 6~300 6~300 | 10~500 4~240 4~240 4~240 4~240 6~240 6~240 6~240 |
Packaging & Shipping
In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
Welcome your request for any quotations!
